    Automatic Punched Paper Bag Making Machine,Paper Bag Forming Machine,Paper Bag Making Machine

    Ask Lasest Price
    Brand Name : HATAC
    Certification : CE
    Model Number : HTZD-460
    Price : 100000-180000$/set
    Delivery Time : 40 days
    Payment Terms : T/T.30% as deposit and the balance is paid before delivery to port.
    Supply Ability : 10 sets/month
    • Product Details
    • Company Profile

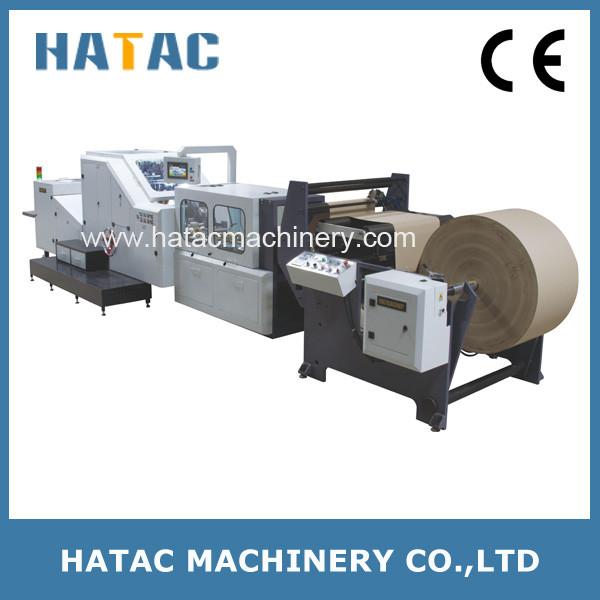

    Automatic Punched Paper Bag Making Machine,Paper Bag Forming Machine,Paper Bag Making Machine

    Automatic Punched Paper Bag Making Machine is for making square bottom paper bags from blank or pre-printed paper roll.

    Working Parameter:

    ModelHTZD-290HTZD-460
    Paper Thickness50-160gsm50-160gsm
    Paper Roll Width320-930mm(12.6”-36.61”)600-1300mm(23.62”-51.18”)
    Max. Paper Roll Dia.1500mm(59”)1500mm(59”)
    Cutting Length270-520mm(9.06”-22.83”)270-520mm(9.06”-22.83”)
    Paper Bag Length225-470mm(6.1”-19.88”)225-470mm(6.1”-19.88”)
    Paper Bag Width80-290mm(3.15”-11.42”)220-460mm(8.66”-18.11”)
    Paper Bag Bottom Width60-160mm(2.36”-6.3”)60-180mm(2.36”-7.08”)
    Paper Core I.D76mm(3”)76mm(3”)
    Max. Speed220pcs/min180pcs/min
    Power13kw15kw
    Weight6500kg9000kg
    Overall Dimension8600*2200*1800mm8600*2500*11800mm

    Specification:

    1. Side gluing,tube forming,paper cutting,bottom creasing,bottom gluing,bottom forming and finished product stacking are completely on one process,with high speed and high production.

    2. With micro-computer control system and touch panel HMI display for working parameters preset.

    3. With Yaskawa servo motor for paper bag length to produce different bag size,production speed is up to 220pcs/min.

    4. With automatic hydraulic lifting system to load heavy jumbo roll onto unwind shaft,save labor and loading time.

    5. With PLC for central control system and SICK photocell for correction to track printed material accurately,save adjustment time to improve production efficiency.

    6. With safety cover to make sure operator’s safety when machine works.

    7. With alarm function for rewinding replacing material and machine stop device for detecting material broken.

    8. Paper bags are delivered by belt and collected on vertical workbench,with automatic counter.

    9. With Schneider Electrical System to make sure machine working stably.

    10. High speed design make sure high production:production capacity can reach 100-180pcs/min with moderate thickness paper,even higher production.

    11. Production speed depends on paper quality,adhesive quality,bag size,operator skills.

    12. It has advantage of high speed,convenient change for different paper bag and high production,which is the best choice for producing food bag,shopping bag,etc.

    Related Machines:

    Economic Paper Reel Slitting and Rewinder Machinery

    Paper Bag Pringing Machine

    Paper Bag Handle Making Machine

    Our Service:

    1. Achievement:

    1) Recommend proper device for our customers.

    2) Provide the best solution for our customers' project.

    3) Follow up after-sale service in regular.

    2. Packing machine of paper and plastic is our areas of expertise.

    1) Sturdy construction and mechanics,long-life span.

    2) Accessories are included.

    3) Machines which have supplied as our customers' request are with high quality for many years.

    3. Machine transportation and shipment

    1) We are cooperated with experienced companies at all majoy Ports in China.

    2) We are flexible in shipping arrangements and accommodate a wide range of shipping company and packing request.

    4. After-sale Service

    1) Operation starts,if there is any defect and area in need of service,we will give you troubleshoot within 24 hours.If they are still not solved,to dispatch technician will be available as your request,round-trip tickets,food,hotel and salary will be paid by our customers.

    2) If assembly is broken(not by human being factor) within one year guarantee time,new assembly will be expressed for free.After one year warranty time,you can buy parts from us or at your local market,we will assist you to get proper ones.
